Sani-Tech® 45° Elbow
Características
Disponible en polipropileno natural o materiales de PVDF.
Tamaños: 3/4 ", 1", 1-1/2 ", 2", 2-1/2 "y 3".
Permiten transiciones suaves.

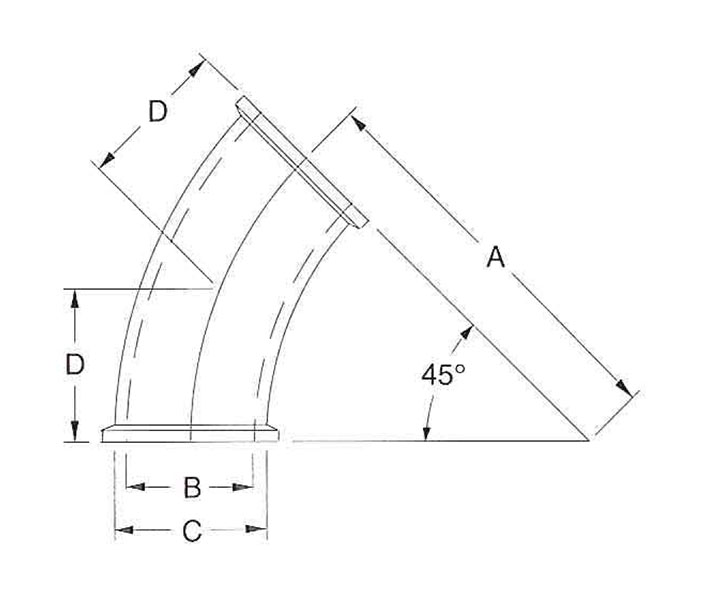

| Ref. | Size | A | B | C | D | Material |
|---|---|---|---|---|---|---|
| T45075 | MINI | 2.5 in | 0.560 in | 0.750 in | 0.96 in | Polypropylene |
| T45100 | MAXI | 2.5 in | 0.856 in | 1.106 in | 0.96 in | Polypropylene |
| T45100L | LADISH | 2.5 in | 0.856 in | 1.106 in | 0.96 in | Polypropylene |
| T45150 | 1 1/2 | 4.250 in | 1.356 in | 1.606 in | 1.630 in | Polypropylene |
| T45200 | 2 | 4.250 in | 1.856 in | 2.106 in | 1.630 in | Polypropylene |
| T45250 | 2 1/2 | 4.250 in | 2.356 in | 2.606 in | 1.630 in | Polypropylene |
| T45300 | 3 | 5.000 in | 2.856 in | 3.106 in | 1.910 in | Polypropylene |
| K45075 | MINI | 2.5 in | 0.560 in | 0.750 in | 0.96 in | PVDF |
| K45100 | MAXI | 2.5 in | 0.856 in | 1.106 in | 0.96 in | PVDF |
| K45100L | LADISH | 2.5 in | 0.856 in | 1.106 in | 0.96 in | PVDF |
| K45150 | 1 1/2 | 4.250 in | 1.356 in | 1.606 in | 1.630 in | PVDF |
| K45200 | 2 | 4.250 in | 1.856 in | 2.106 in | 1.630 in | PVDF |
| K45250 | 2 1/2 | 4.250 in | 2.356 in | 2.606 in | 1.630 in | PVDF |
| K45300 | 3 | 5.000 in | 2.856 in | 3.106 in | 1.910 in | PVDF |
