Sani-Tech® 90° Elbow
Características
Disponible en polipropileno natural o materiales de PVDF.
Tamaños: 3/4 ", 1", 1-1/2 ", 2", 2-1/2 "y 3".
Permiten transiciones suaves.

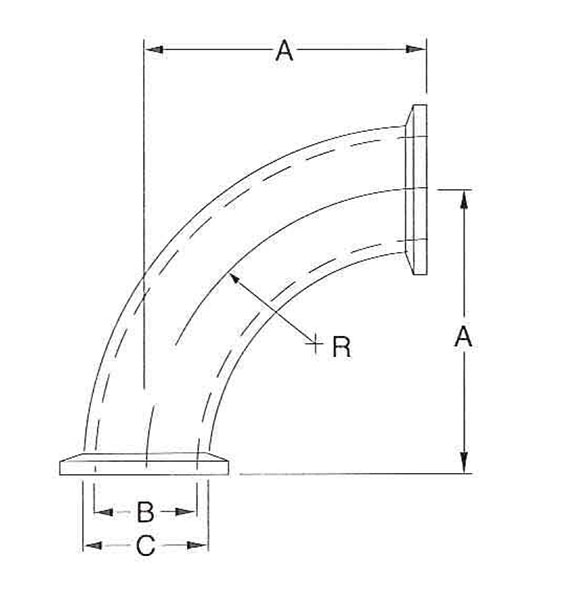

| Ref. | Size | A | B | C | R | Material |
|---|---|---|---|---|---|---|
| T90075 | MINI | 2.5 in | 0.560 in | 0.750 in | 2.500 in | Polypropylene |
| T90100 | MAXI | 2.5 in | 0.856 in | 1.106 in | 2.500 in | Polypropylene |
| T90100L | LADISH | 2.5 in | 0.856 in | 1.106 in | 2.500 in | Polypropylene |
| T90150 | 1 1/2 | 2.750 in | 1.356 in | 1.606 in | 2.750 in | Polypropylene |
| T90200 | 2 | 3.500 in | 1.856 in | 2.106 in | 3.500 in | Polypropylene |
| T90250 | 2 1/2 | 4.250 in | 2.356 in | 2.606 in | 4.250 in | Polypropylene |
| T90300 | 3 | 5.000 in | 2.856 in | 3.106 in | 5.000 in | Polypropylene |
| K90075 | MINI | 2.5 in | 0.560 in | 0.750 in | 2.500 in | PVDF |
| K90100 | MAXI | 2.5 in | 0.856 in | 1.106 in | 2.500 in | PVDF |
| K90100L | LADISH | 2.5 in | 0.856 in | 1.106 in | 2.500 in | PVDF |
| K90150 | 1 1/2 | 2.750 in | 1.356 in | 1.606 in | 2.750 in | PVDF |
| K90200 | 2 | 3.500 in | 1.856 in | 2.106 in | 3.500 in | PVDF |
| K90250 | 2 1/2 | 4.250 in | 2.356 in | 2.606 in | 4.250 in | PVDF |
| K90300 | 3 | 5.000 in | 2.856 in | 3.106 in | 5.000 in | PVDF |
