Sani-Tech® Cross Tee
Características
Conector T cruzado sanitario.
Disponible en polipropileno natural o materiales de PVDF.
Tamaños: 3/4 ", 1", 1-1/2 ", 2", 2-1/2 "y 3".

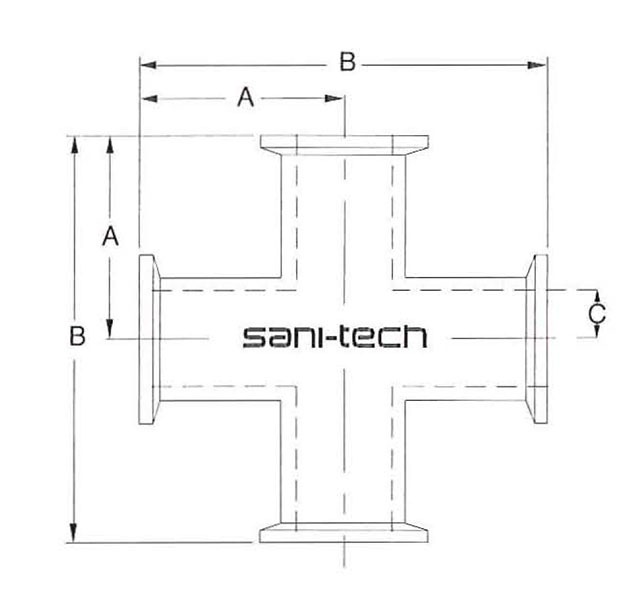

| Ref. | Size | A | B | C | Tube OD | Material |
|---|---|---|---|---|---|---|
| TCT075 | MINI | 2.620 in | 5.250 in | 0.560 in | 0.750 in | Polypropylene |
| TCT100 | MAXI | 2.000 in | 4.000 in | 0.856 in | 1.106 in | Polypropylene |
| TCT100L | LADISH | 3.190 in | 6.380 in | 0.856 in | 1.106 in | Polypropylene |
| TCT150 | 1 1/2 | 2.750 in | 5.500 in | 1.356 in | 1.606 in | Polypropylene |
| TCT200 | 2 | 3.500 in | 7.000 in | 1.856 in | 2.106 in | Polypropylene |
| TCT250 | 2 1/2 | 3.500 in | 7.000 in | 2.356 in | 2.606 in | Polypropylene |
| TCT300 | 3 | 3.750 in | 7.500 in | 2.856 in | 3.106 in | Polypropylene |
| TCT400 | 4 | 4.500 in | 9.000 in | 3.810 in | 4.060 in | Polypropylene |
| KCT075 | MINI | 2.620 in | 5.190 in | 0.560 in | 0.750 in | PVDF |
| KCT100 | MAXI | 2.000 in | 4.000 in | 0.856 in | 1.106 in | PVDF |
| KCT100L | LADISH | 3.190 in | 6.380 in | 0.856 in | 1.106 in | PVDF |
| KCT150 | 1 1/2 | 2.750 in | 5.500 in | 1.356 in | 1.606 in | PVDF |
| KCT200 | 2 | 3.500 in | 7.000 in | 1.856 in | 2.106 in | PVDF |
| KCT250 | 2 1/2 | 3.500 in | 7.000 in | 2.356 in | 2.606 in | PVDF |
| KCT300 | 3 | 3.750 in | 7.500 in | 2.856 in | 3.106 in | PVDF |
| KCT400 | 4 | 4.500 in | 9.000 in | 3.810 in | 4.060 in | PVDF |
