Sani-Tech® End Cap with FNPT Tap
Características
Se usa para conectar componentes MNPT a un sistema sanitario.
Disponible en una amplia gama de tamaños desde 3/4 "a 4".
Disponible en materiales de polipropileno o PVDF

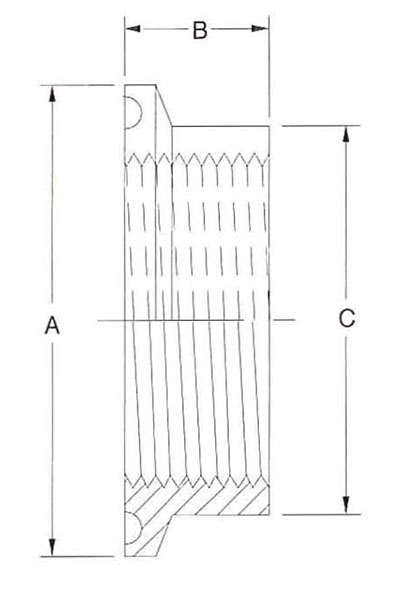

| Ref. | Tri-Clamp Size | FNPT | A | B | C | Material |
|---|---|---|---|---|---|---|
| TEC075-02F | MINI | 1/8 | 0.992 in | 0.500 in | 0.750 in | Polypropylene |
| TEC075-04F | MINI | 1/4 | 0.992 in | 0.500 in | 0.750 in | Polypropylene |
| TEC100-02F | MAXI | 1/8 | 1.500 in | 0.500 in | 1.106 in | Polypropylene |
| TEC100-04F | MAXI | 1/4 | 1.500 in | 0.500 in | 1.106 in | Polypropylene |
| TEC100-06F | MAXI | 3/8 | 1.500 in | 0.500 in | 1.106 in | Polypropylene |
| TEC100-08F | MAXI | 1/2 | 1.500 in | 0.500 in | 1.106 in | Polypropylene |
| TEC150-02F | 1 1/2 | 1/8 | 1.984 in | 0.500 in | 1.606 in | Polypropylene |
| TEC150-04F | 1 1/2 | 1/4 | 1.984 in | 0.500 in | 1.606 in | Polypropylene |
| TEC150-06F | 1 1/2 | 3/8 | 1.984 in | 0.500 in | 1.606 in | Polypropylene |
| TEC150-08F | 1 1/2 | 1/2 | 1.984 in | 0.500 in | 1.606 in | Polypropylene |
| TEC150-10F | 1 1/2 | 5/8 | 1.984 in | 0.500 in | 1.606 in | Polypropylene |
| TEC150-12F | 1 1/2 | 3/4 | 1.984 in | 0.500 in | 1.606 in | Polypropylene |
| TEC150-14F | 1 1/2 | 7/8 | 1.984 in | 0.500 in | 1.606 in | Polypropylene |
| TEC150-16F | 1 1/2 | 1 | 1.984 in | 0.500 in | 1.606 in | Polypropylene |
| TEC200-02F | 2 | 1/8 | 2.516 in | 0.500 in | 2.106 in | Polypropylene |
| TEC200-04F | 2 | 1/4 | 2.516 in | 0.500 in | 2.106 in | Polypropylene |
| TEC200-06F | 2 | 3/8 | 2.516 in | 0.500 in | 2.106 in | Polypropylene |
| TEC200-08F | 2 | 1/2 | 2.516 in | 0.500 in | 2.106 in | Polypropylene |
| TEC200-10F | 2 | 5/8 | 2.516 in | 0.500 in | 2.106 in | Polypropylene |
| TEC200-12F | 2 | 3/4 | 2.516 in | 0.500 in | 2.106 in | Polypropylene |
| TEC200-14F | 2 | 7/8 | 2.516 in | 0.500 in | 2.106 in | Polypropylene |
| TEC200-16F | 2 | 1 | 2.516 in | 0.500 in | 2.106 in | Polypropylene |
| TEC250-02F | 2 1/2 | 1/8 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC250-04F | 2 1/2 | 1/4 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC250-06F | 2 1/2 | 3/8 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC250-08F | 2 1/2 | 1/2 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC250-10F | 2 1/2 | 5/8 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC250-12F | 2 1/2 | 3/4 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC250-14F | 2 1/2 | 7/8 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC250-16F | 2 1/2 | 1 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC250-20F | 2 1/2 | 1 1/4 | 3.047 in | 0.500 in | 2.606 in | Polypropylene |
| TEC300-02F | 3 | 1/8 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-04F | 3 | 1/4 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-06F | 3 | 3/8 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-08F | 3 | 1/2 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-10F | 3 | 5/8 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-12F | 3 | 3/4 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-14F | 3 | 7/8 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-16F | 3 | 1 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-20F | 3 | 1 1/4 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-24F | 3 | 1 1/2 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC300-32F | 3 | 2 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC400-02F | 4 | 1/8 | 3.579 in | 0.500 in | 3.106 in | Polypropylene |
| TEC400-04F | 4 | 1/4 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-06F | 4 | 3/8 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-08F | 4 | 1/2 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-10F | 4 | 5/8 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-12F | 4 | 3/4 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-14F | 4 | 7/8 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-16F | 4 | 1 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-20F | 4 | 1 1/4 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-24F | 4 | 1 1/2 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-32F | 4 | 2 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| TEC400-40F | 4 | 2 1/2 | 4.682 in | 0.500 in | 4.060 in | Polypropylene |
| KEC075-02F | MINI | 1/8 | 0.992 in | 0.500 in | 0.750 in | PVDF |
| KEC075-04F | MINI | 1/4 | 0.992 in | 0.500 in | 0.750 in | PVDF |
| KEC100-02F | MAXI | 1/8 | 1.500 in | 0.500 in | 1.106 in | PVDF |
| KEC100-04F | MAXI | 1/4 | 1.500 in | 0.500 in | 1.106 in | PVDF |
| KEC100-06F | MAXI | 3/8 | 1.500 in | 0.500 in | 1.106 in | PVDF |
| KEC100-08F | MAXI | 1/2 | 1.500 in | 0.500 in | 1.106 in | PVDF |
| KEC150-02F | 1 1/2 | 1/8 | 1.984 in | 0.500 in | 1.606 in | PVDF |
| KEC150-04F | 1 1/2 | 1/4 | 1.984 in | 0.500 in | 1.606 in | PVDF |
| KEC150-06F | 1 1/2 | 3/8 | 1.984 in | 0.500 in | 1.606 in | PVDF |
| KEC150-08F | 1 1/2 | 1/2 | 1.984 in | 0.500 in | 1.606 in | PVDF |
| KEC150-10F | 1 1/2 | 5/8 | 1.984 in | 0.500 in | 1.606 in | PVDF |
| KEC150-12F | 1 1/2 | 3/4 | 1.984 in | 0.500 in | 1.606 in | PVDF |
| KEC150-14F | 1 1/2 | 7/8 | 1.984 in | 0.500 in | 1.606 in | PVDF |
| KEC150-16F | 1 1/2 | 1 | 1.984 in | 0.500 in | 1.606 in | PVDF |
| KEC200-02F | 2 | 1/8 | 2.516 in | 0.500 in | 2.106 in | PVDF |
| KEC200-04F | 2 | 1/4 | 2.516 in | 0.500 in | 2.106 in | PVDF |
| KEC200-06F | 2 | 3/8 | 2.516 in | 0.500 in | 2.106 in | PVDF |
| KEC200-08F | 2 | 1/2 | 2.516 in | 0.500 in | 2.106 in | PVDF |
| KEC200-10F | 2 | 5/8 | 2.516 in | 0.500 in | 2.106 in | PVDF |
| KEC200-12F | 2 | 3/4 | 2.516 in | 0.500 in | 2.106 in | PVDF |
| KEC200-14F | 2 | 7/8 | 2.516 in | 0.500 in | 2.106 in | PVDF |
| KEC200-16F | 2 | 1 | 2.516 in | 0.500 in | 2.106 in | PVDF |
| KEC250-02F | 2 1/2 | 1/8 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC250-04F | 2 1/2 | 1/4 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC250-06F | 2 1/2 | 3/8 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC250-08F | 2 1/2 | 1/2 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC250-10F | 2 1/2 | 5/8 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC250-12F | 2 1/2 | 3/4 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC250-14F | 2 1/2 | 7/8 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC250-16F | 2 1/2 | 1 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC250-20F | 2 1/2 | 1 1/4 | 3.047 in | 0.500 in | 2.606 in | PVDF |
| KEC300-02F | 3 | 1/8 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-04F | 3 | 1/4 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-06F | 3 | 3/8 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-08F | 3 | 1/2 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-10F | 3 | 5/8 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-12F | 3 | 3/4 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-14F | 3 | 7/8 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-16F | 3 | 1 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-20F | 3 | 1 1/4 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-24F | 3 | 1 1/2 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC300-32F | 3 | 2 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC400-02F | 4 | 1/8 | 3.579 in | 0.500 in | 3.106 in | PVDF |
| KEC400-04F | 4 | 1/4 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-06F | 4 | 3/8 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-08F | 4 | 1/2 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-10F | 4 | 5/8 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-12F | 4 | 3/4 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-14F | 4 | 7/8 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-16F | 4 | 1 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-20F | 4 | 1 1/4 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-24F | 4 | 1 1/2 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-32F | 4 | 2 | 4.682 in | 0.500 in | 4.060 in | PVDF |
| KEC400-40F | 4 | 2 1/2 | 4.682 in | 0.500 in | 4.060 in | PVDF |
