Sani-Tech® End Cap

Tuberías y componentes rigidos de alta pureza

  Características

Se usa para terminar una conexión sanitaria.
Disponible en una amplia gama de tamaños desde 3/4" a 4".
Disponible en materiales de polipropileno o PVDF

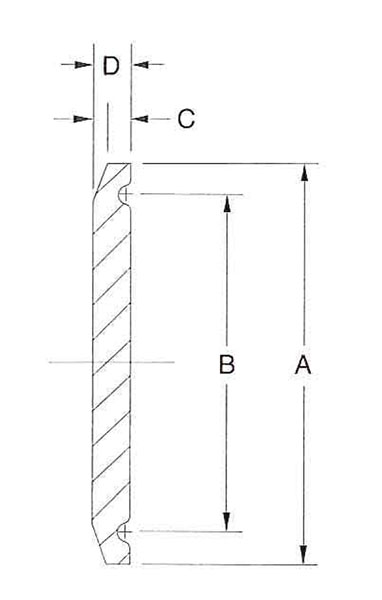

Ref. Tri-Clamp Size A B C D Material
TEC075 MINI 0.992 in 0.859 in 0.143 in 0.188 in Polypropylene
TEC100 MAXI 1.500 in 1.250 in 0.112 in 0.188 in Polypropylene
TEC150L 1 LADISH 1.984 in 1.718 in 0.112 in 0.240 in Polypropylene
TEC150 1 1/2 1.984 in 1.718 in 0.112 in 0.240 in Polypropylene
TEC200 2 2.516 in 2.218 in 0.112 in 0.240 in Polypropylene
TEC250 2 1/2 3.047 in 2.781 in 0.112 in 0.240 in Polypropylene
TEC300 3 3.579 in 3.281 in 0.112 in 0.240 in Polypropylene
TEC300TH 3 TH 3.579 in 3.281 in 0.112 in 0.500 in Polypropylene
TEC400 4 4.682 in 4.344 in 0.112 in 0.240 in Polypropylene
TEC400TH 4 TH 4.682 in 4.344 in 0.112 in 0.500 in Polypropylene
TEC600 6 6.570 in 6.178 in 0.220 in 0.500 in Polypropylene
TEC800 8 8.563 in 8.188 in 0.220 in 0.500 in Polypropylene
KEC075 MINI 0.992 in 0.859 in 0.143 in 0.188 in PVDF
KEC100 MAXI 1.500 in 1.250 in 0.112 in 0.188 in PVDF
KEC150L 1 LADISH 1.984 in 1.718 in 0.112 in 0.240 in PVDF
KEC150 1 1/2 1.984 in 1.718 in 0.112 in 0.240 in PVDF
KEC200 2 2.516 in 2.218 in 0.112 in 0.240 in PVDF
KEC250 2 1/2 3.047 in 2.781 in 0.112 in 0.240 in PVDF
KEC300 3 3.579 in 3.281 in 0.112 in 0.240 in PVDF
KEC300TH 3 TH 3.579 in 3.281 in 0.112 in 0.500 in PVDF
KEC400 4 4.682 in 4.344 in 0.112 in 0.240 in PVDF
KEC400TH 4 TH 4.682 in 4.344 in 0.112 in 0.500 in PVDF
KEC600 6 6.570 in 6.178 in 0.220 in 0.500 in PVDF
KEC800 8 8.563 in 8.188 in 0.220 in 0.500 in PVDF
PSEC075 MINI 0.992 in 0.859 in 0.143 in 0.188 in Polysulfone
PSEC100 MAXI 1.500 in 1.250 in 0.112 in 0.188 in Polysulfone
PSEC150L 1 LADISH 1.984 in 1.718 in 0.112 in 0.240 in Polysulfone
PSEC150 1 1/2 1.984 in 1.718 in 0.112 in 0.240 in Polysulfone
PSEC200 2 2.516 in 2.218 in 0.112 in 0.240 in Polysulfone
PSEC250 2 1/2 3.047 in 2.781 in 0.112 in 0.240 in Polysulfone
PSEC300 3 3.579 in 3.281 in 0.112 in 0.240 in Polysulfone
PSEC300TH 3 TH 3.579 in 3.281 in 0.112 in 0.500 in Polysulfone
PSEC400 4 4.682 in 4.344 in 0.112 in 0.240 in Polysulfone
PSEC400TH 4 TH 4.682 in 4.344 in 0.112 in 0.500 in Polysulfone
PSEC600 6 6.570 in 6.178 in 0.220 in 0.500 in Polysulfone
PSEC800 8 8.563 in 8.188 in 0.220 in 0.500 in Polysulfone
