Sani-Tech® Reducing Tee
Características
Conector T reducida sanitario.
Disponible en polipropileno natural o materiales de PVDF.
Tamaños: 3/4 ", 1", 1-1/2 ", 2", 2-1/2 "y 3".

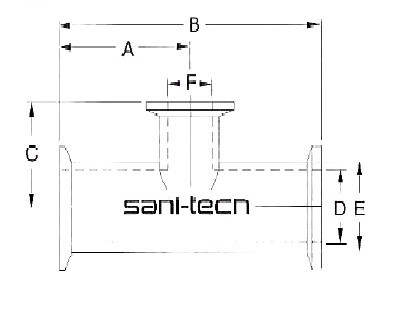

| Ref. | Spool Size | Bull Size | A | B | C | Material |
|---|---|---|---|---|---|---|
| TRT100-075 | MAXI | MINI | 2.000 in | 4.000 in | 1.560 in | Polypropylene |
| TRT100L-075 | LADISH | MINI | 3.190 in | 6.380 in | 2.5 in | Polypropylene |
| TRT150-075 | 1 1/2 | MINI | 2.750 in | 5.500 in | 1.940 in | Polypropylene |
| TRT150-100 | 1 1/2 | MAXI | 2.750 in | 5.500 in | 1.940 in | Polypropylene |
| TRT200-075 | 2 | MINI | 3.44 in | 6.880 in | 2.16 in | Polypropylene |
| TRT200-100 | 2 | MAXI | 3.44 in | 6.880 in | 2.16 in | Polypropylene |
| TRT200-150 | 2 | 1 1/2 | 3.44 in | 6.880 in | 2.16 in | Polypropylene |
| TRT250-075 | 2 1/2 | MINI | 3.500 in | 7.000 in | 2.430 in | Polypropylene |
| TRT250-100 | 2 1/2 | MAXI | 3.500 in | 7.000 in | 2.430 in | Polypropylene |
| TRT250-150 | 2 1/2 | 1 1/2 | 3.500 in | 7.000 in | 2.430 in | Polypropylene |
| TRT250-200 | 2 1/2 | 2 | 3.500 in | 7.000 in | 2.430 in | Polypropylene |
| TRT300-075 | 3 | MINI | 3.750 in | 7.500 in | 2.680 in | Polypropylene |
| TRT300-100 | 3 | MAXI | 3.750 in | 7.500 in | 2.680 in | Polypropylene |
| TRT300-150 | 3 | 1 1/2 | 3.750 in | 7.500 in | 2.680 in | Polypropylene |
| TRT300-200 | 3 | 2 | 3.750 in | 7.500 in | 2.680 in | Polypropylene |
| TRT300-250 | 3 | 2 1/2 | 3.750 in | 7.500 in | 2.680 in | Polypropylene |
| KRT100-075 | MAXI | MINI | 2.000 in | 4.000 in | 1.560 in | PVDF |
| KRT100L-075 | LADISH | MINI | 3.190 in | 6.380 in | 2.5 in | PVDF |
| KRT150-075 | 1 1/2 | MINI | 2.750 in | 5.500 in | 1.940 in | PVDF |
| KRT150-100 | 1 1/2 | MAXI | 2.750 in | 5.500 in | 1.940 in | PVDF |
| KRT200-075 | 2 | MINI | 3.44 in | 6.880 in | 2.16 in | PVDF |
| KRT200-100 | 2 | MAXI | 3.44 in | 6.880 in | 2.16 in | PVDF |
| KRT200-150 | 2 | 1 1/2 | 3.44 in | 6.880 in | 2.16 in | PVDF |
| KRT250-075 | 2 1/2 | MINI | 3.500 in | 7.000 in | 2.430 in | PVDF |
| KRT250-100 | 2 1/2 | MAXI | 3.500 in | 7.000 in | 2.430 in | PVDF |
| KRT250-150 | 2 1/2 | 1 1/2 | 3.500 in | 7.000 in | 2.430 in | PVDF |
| KRT250-200 | 2 1/2 | 2 | 3.500 in | 7.000 in | 2.430 in | PVDF |
| KRT300-075 | 3 | MINI | 3.750 in | 7.500 in | 2.680 in | PVDF |
| KRT300-100 | 3 | MAXI | 3.750 in | 7.500 in | 2.680 in | PVDF |
| KRT300-150 | 3 | 1 1/2 | 3.750 in | 7.500 in | 2.680 in | PVDF |
| KRT300-200 | 3 | 2 | 3.750 in | 7.500 in | 2.680 in | PVDF |
| KRT300-250 | 3 | 2 1/2 | 3.750 in | 7.500 in | 2.680 in | PVDF |
