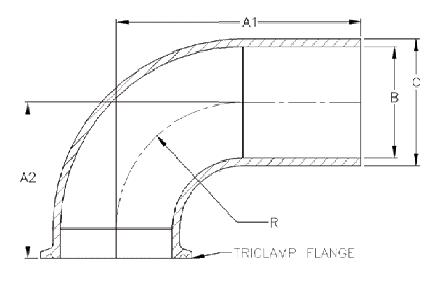

Sani-Tech® Short Radius SIB 90° Elbow (SIB x Tri-Clamp)
| Ref. | Size | A1 | A2 | B | C | R | Material |
|---|---|---|---|---|---|---|---|
| SKM90-150-NT | 1 1/2 | 3.490 in | 2.020 in | 1.360 in | 1.610 in | 1.560 in | PVDF |
| STM90-150-NT | 1 1/2 | 3.490 in | 2.020 in | 1.360 in | 1.610 in | 1.560 in | Polypropylene |
| SKM90-200-NT | 2 | 4.060 in | 2.590 in | 1.860 in | 2.110 in | 2.100 in | PVDF |
| STM90-200-NT | 2 | 4.060 in | 2.590 in | 1.860 in | 2.110 in | 2.100 in | Polypropylene |
