Sani-Tech® Standard Tee
Características
Sanitary Tee connector.
Disponible en polipropileno natural o materiales de PVDF.
Tamaños: 3/4 ", 1", 1-1/2 ", 2", 2-1/2 "y 3".

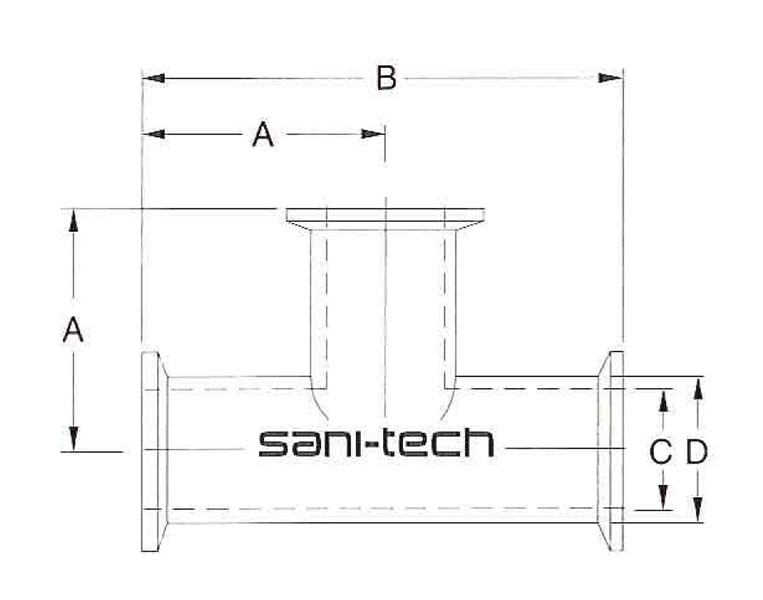

| Ref. | Size | A | B | C | D | Material |
|---|---|---|---|---|---|---|
| TT075 | MINI | 2.620 in | 5.250 in | 0.560 in | 0.750 in | Polypropylene |
| TT100 | MAXI | 2.000 in | 4.000 in | 0.856 in | 1.106 in | Polypropylene |
| TT100 L | 1 LADISH | 3.190 in | 6.380 in | 0.856 in | 1.106 in | Polypropylene |
| TT150 | 1 1/2 | 2.750 in | 5.500 in | 1.356 in | 1.606 in | Polypropylene |
| TT200 | 2 | 3.440 in | 6.880 in | 1.856 in | 2.106 in | Polypropylene |
| TT250 | 2 1/2 | 3.500 in | 7.000 in | 2.356 in | 2.606 in | Polypropylene |
| TT300 | 3 | 3.750 in | 7.500 in | 2.856 in | 3.106 in | Polypropylene |
| TT400 | 4 | 4.500 in | 9.000 in | 3.810 in | 4.106 in | Polypropylene |
| KT075 | MINI | 2.620 in | 5.250 in | 0.560 in | 0.750 in | PVDF |
| KT100 | MAXI | 2.000 in | 4.000 in | 0.856 in | 1.106 in | PVDF |
| KT100 L | 1 LADISH | 3.190 in | 6.380 in | 0.856 in | 1.106 in | PVDF |
| KT150 | 1 1/2 | 2.750 in | 5.500 in | 1.356 in | 1.606 in | PVDF |
| KT200 | 2 | 3.440 in | 6.880 in | 1.856 in | 2.106 in | PVDF |
| KT250 | 2 1/2 | 3.500 in | 7.000 in | 2.356 in | 2.606 in | PVDF |
| KT300 | 3 | 3.750 in | 7.500 in | 2.856 in | 3.106 in | PVDF |
| KT400 | 4 | 4.500 in | 9.000 in | 3.810 in | 4.106 in | PVDF |
